Prime-Line GD 12233 Left Hand Wind Garage Door Torsion Spring – Replace Broken Garage Door Springs – .243 in. x 2 in. x…

Amazon.com Price: $97.35 (as of 31/01/2021 13:25 PST- Details) & FREE Shipping.

REPLACE BROKEN SPRINGS – Use this steel left hand wound torsion spring to replace broken garage door springs. It includes stationary and winding cones
REQUIRES – The use of 2 winding rods for replacement. When dual spring installations are involved, it is important to correctly install both the left and right wind springs during the same job

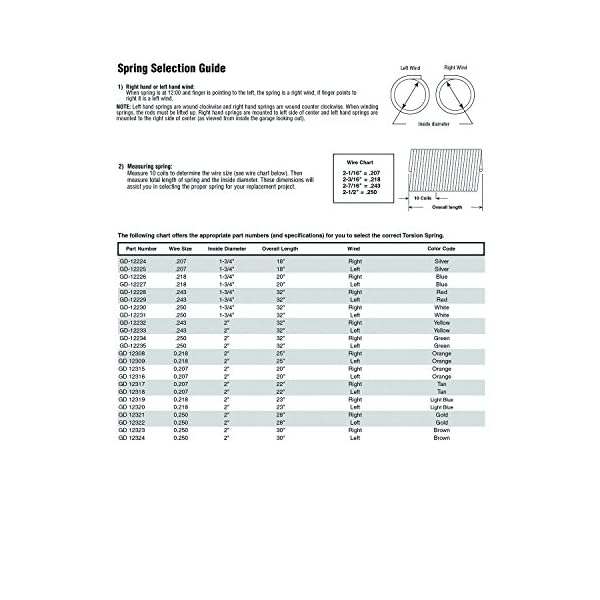

SELECTION – Torsion springs provide lifting force for heavy garage doors and must be selected by the spring’s dimensions, rather than the door’s weight. Use the spring selection guide to assure the proper replacement part has been selected

In Stock.

Description

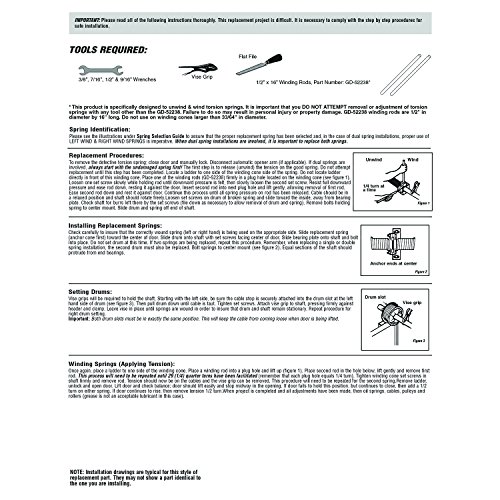

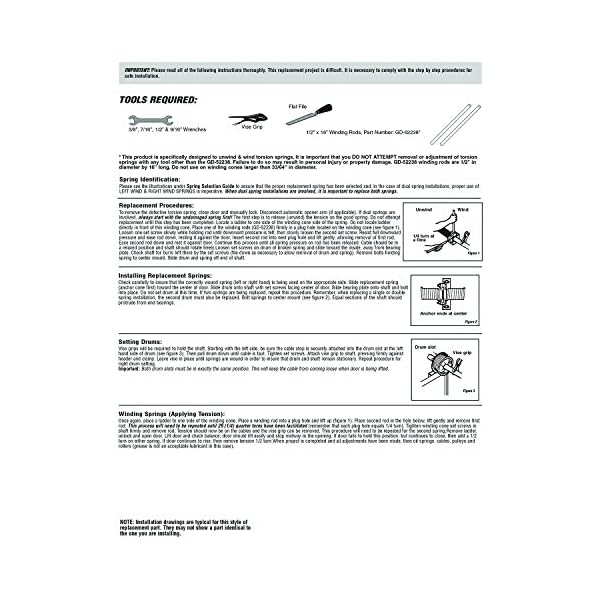

Use this steel left hand wound torsion spring to replace broken garage door springs. It includes stationary and winding cones with .243” wire size x 2 “ inside dimension x 32” length with yellow color code. This torsion spring is a regular duty spring with an estimated lifetime rating of 10,000 cycles. These types of torsion springs provide lifting force for heavy garage doors and must be selected by the spring’s dimensions, rather than the door’s weight. See the product specifications with illustrations found in Prime-Line’s Torsion Spring Selection Guide to assure that the proper replacement spring has been selected. Steel winding rods are used to wind and unwind the tension on torsion springs and they are the only tools recommended for this purpose. Two winding rods are required for torsion spring replacement. When dual spring installations are involved, it is important to correctly install both the left and right wind springs during the same job. In the case of dual spring installations, note that the proper use of LEFT WIND and RIGHT WIND springs is imperative. Also, when dual spring installations are involved, it is important to replace both springs, as replacing only one spring may add increased strain to the older non-replaced spring. As an important safety precaution: all broken or malfunctioning hardware should be replaced with matching hardware, without any modifications. Garage door torsion springs can cause serious injury if not handled and installed properly. If attempting to replace the torsion springs yourself, it is important that the removal or adjustment of torsion springs is not attempted with any other tool other than Prime-Line’s item number GD-52238. Failure to utilize Prime-Line’s item number GD-52238 for the replacement of these springs may result in severe personal injury. Note: To determine the handing of your torsion spring wind, look at the end of the spring with the ‘finger’ of the spring at the top of the wind. When the end of the spring is at 12:00 o’clock and it is pointing to the left, the spring is a right wind; if the end of the spring points to right (positioned at 12:00 o’clock) it is a left wind. When standing inside the garage looking outside, the torsion spring with the black painted winding cone installs on the right side of the door, and the torsion spring with the red painted winding cone installs on the left side of the door.
REPLACE BROKEN SPRINGS – Use this steel left hand wound torsion spring to replace broken garage door springs. It includes stationary and winding cones
REQUIRES – The use of 2 winding rods for replacement. When dual spring installations are involved, it is important to correctly install both the left and right wind springs during the same job
SELECTION – Torsion springs provide lifting force for heavy garage doors and must be selected by the spring’s dimensions, rather than the door’s weight. Use the spring selection guide to assure the proper replacement part has been selected

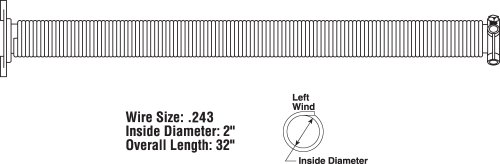

DIMENSIONS – Garage door torsion spring is: .243″ wire size x 2″ inside dimension x 32″ length with yellow color code
MOUNTING – Right hand springs are mounted to left side of center and left hand springs are mounted to the right side of center (inside the garage looking out)
